obd connector

  With the rise of the electronics industry, more and more products are used in terminal blocks and their applications are becoming more extensive. In fact, the terminal is a kind of accessory product used to realize the electrical connection, which is divided into the category of the connector in the industry. Many people are not very familiar with the types of terminals. Generally, there are six types of terminals: ​ 1. Plug-in It is formed by two parts plugging and unplugging. One part presses the wire tightly and then plugs it into the other part, which is soldered to the PCB board. The mechanical principle of the connection bottom and the anti-vibration design ensure the long-term airtight connection of the product and the reliability of the finished product. Mounting ears can be added to both ends of the socket. The mounting ears can protect the splices to a large extent and avoid the lack of proper placement of the splices. At the same time, this socket design can ensure that th

  When binding wires and cables together, you have a few choices to make. Because custom cable assemblies are tailored to specific needs, they can be designed to withstand environmental factors, like moisture, heat, friction, and other hazards. They can even come in different shapes or sizes depending on the space where they will be used.  When working with a wire and cable manufacturer, they will work with you to determine a wide range of factors for your cable assembly, such as: ​ ·Conductor Gauge & Material ·Stranding Sizes ·Insulation Types ·Jacketing Materials ·Wraps & Shields An experienced cable manufacturer like Yeahui Cable is able to offer you a vast range of customization options for custom cable assemblies. Since all of our products are made to order, we are able to design and produce a cable assembly that is customized to the needs of your equipment and environment. Yahui is a wire harness assembly and PVC molding factory. Our products are diversified, such as obd2

  Cable assembly is a group of wires or cables that are arranged together in a group to create a single unit. They are often used for transmitting information signals or power. Depending on the applications, cable assemblies are available with different types of cable construction, customization, length, size, and color. ​ Cable assemblies are designed for environmental factors. So before installing it, you need to consider the size of the area and the environmental factors they’re likely to encounter. That’s why they are generally made from heavy materials like shrink-wrapped thermoplastic, vinyl or thermoplastic rubber. The world of technology is moving so fast that each day we witness something new. And the main focus of today’s technological world is to deliver a design that is efficient as well as takes less space. And that’s where cable assembly comes in. The main purpose of the cable assembly is to accommodate complicated installation into a simpler structure that saves space. Y

  The deutsch Y-splitter cable allows you to connect 2  devices on your vehicle at the same time. It features dual deutsch connectors to a single other connector. · 1X custom connetor and 2X deutsch connector · It is Great for installing  devices of heavy duty vehicle · Flexible, heavy duty twisted shielded cable · Manufactured with high quality, automotive grade materials . Customized length ​ Future Developments Yeahui continues to look for ways to make the harness selection and installation process easier for our customers. Since most of our customers prefer to use our T-harnesses, our automotive team continuously works to match the connector type to that of the OEM connector. The development of the Universal T-Harness Kits is an example of how we try to build in innovation in every part of our Yeahui solution. Yahui is a PVC molding and assembly wiring harness factory, providing obd2 adapters,  obd2 connector , deutsch connector for Car onboard system for more than 13 years. If you

  In many cases, we need the connector to have multiple functions to provide us with convenience, because our connectors are not only used in normal environments, but also in harsh environments, such as rainy days, low temperatures, high temperatures, etc. Wait, then we need the connector to work normally in harsh environments. ​ The deutsch Series connector is a heavy duty rated, environmentally sealed, composite shell, multi-pin connector. The composite thermoplastic shell is ideal in applications where chemicals can damage a connector housing. deutsch features quick connect-disconnect bayonet coupling, single hole bulkhead mounting, silicone seals, and a rear insertion/rear removal contact system. Yahui has a deutsch DT 2pin cable, which conforms to IEC IP67, is suitable for 12 VDC or 24 VDC systems and solids, with bright red LEDs and visual indications to provide convenient on-board troubleshooting. The cable uses 18awg conductor, which has the functions of abrasion resistance, hi

  The automobile industry is very hot now. Now every company has a car in basic configuration, so the demand for cars has also increased. Each assembly of a car requires a lot of car wiring harnesses, so car wire speeds and connectors have been developed accordingly. And sometimes when faced with harsh environments, we need connectors that can be used normally in harsh environments. ​ The deutsch Series connector is a heavy duty rated, environmentally sealed, composite shell, multi-pin connector. The composite thermoplastic shell is ideal in applications where chemicals can damage a connector housing. deutsch features quick connect-disconnect bayonet coupling, single hole bulkhead mounting, silicone seals, and a rear insertion/rear removal contact system. Our deutsch series of connectors are also special, that is, two connectors with led lights, one is a square dt 2pin female connector, and the other is a round 9pin female connector. Insert it. Will give us a power-on prompt later. Yah

  Common obd2 connectors have only one line connected to the plugs on both sides to provide power or data transmission for the vehicle OBD. ​ For the convenience of users, Yahui have designed obd2 connector with led lights. The first is a connector similar to AC3, it has not passed the molding, but installed the PCB on the connector, and the led light is installed on the PCB. The other one is that you can use the switch to control the led light, and the connector is already formed. These two products are more practical connectors, but it also depends on the usage scenario. Yahui is a cable forming and wiring harness assembly factory with more than 13 years of production experience and buyers all over the world. Our main products are  obd2 connector ,  circular connector , marine connector and other connectors. If you are interested in our products, please consult us. More about NEWS( OBD-I vs. OBD-II ).

  Before OBD-I, each manufacturer had their own set of standards for OBD, meaning that mechanics had to buy expensive scan tools for each manufacturer. OBD-I was first introduced in 1987, and started the standardization of onboard diagnostics. It had sensors that detected emissions and was able to minimize them through emissions-controlling valves. However, it had many problems and shortfalls. ​ As a result, in 1996 car manufacturers started to equip cars and trucks with an OBD-II port. Every system is mostly the same, but there are slight variations. These are known as protocols, and are specific to vehicle manufacturers. There are five basic signal protocols: SAE J1850 PWM: Pulse Width Modulation, used in Ford vehicles SAE J1850 VPW: Variable Pulse Width used in General Motors vehicles ISO9141-2: Used in all Chrysler and a variety of European or Asian vehicles ISO14230-4 (KWP2000): Keyword Protocol, used in a variety of European and Asian imports as well as Honda, Jeep, Land Rover, S

  Diagnostic Trouble Codes (DTC) are stored in the computer system. Codes can vary from one manufacturer to another. However, anyone with an OBD-II scan tool can connect to the port and read the diagnostic trouble codes from the computer. ​ The reason any OBD-II scan tool can read the codes is because of the standardized pinout. Scan tools can read from any of the protocols listed above. The standardized pinout is as follows. Pin 1: Used by manufacturer Pin 2: Used by SAE J1850 PWM and VPW Pin 3: Used by manufacturer Pin 4: Ground Pin 5: Ground Pin 6: Used by ISO 15765-4 CAN Pin 7: The K-Line of ISO 9141-2 and ISO 14230-4 Pin 10: Used only by SAE J1850 PWM Pin 14: Used by ISO 15765-4 CAN Pin 15: The K-Line of ISO 9141-2 and ISO 14230-4 Pin 16: Power from the car battery OBD-II scanners can connect to these ports and identify the trouble code from any manufacturer that uses one of the OBD-II protocols. Yahui is a PVC molding and assembly wiring harness factory, providing obd2 adapters a

Traditionally, a mechanic would hook up a scan tool to the port to read the DTC. Less expensive scanners would only provide a numeric code, which the mechanic would then look up from the manufacturer’s manual or service website. More expensive scanners provide will provide text error codes. ​ However, in recent years, there are more advanced tools available for regular drivers who don’t want to have to depend on a mechanic to find out what’s wrong with their car. One example is the OBDLink SX USB Adapter by ScanTool that lets you read the trouble codes with your laptop. This device lets you plug directly into the OBD-II port, and plug the other end into the USB port of your Windows laptop. This transforms your computer into an advanced OBD scanner tool, plus you can even clear the Check Engine light with the OBDwiz diagnostics software. Yeahui is a connector supplier with 13 years of experience in developing high-quality connectors and wiring harnesses. We have many types of products,

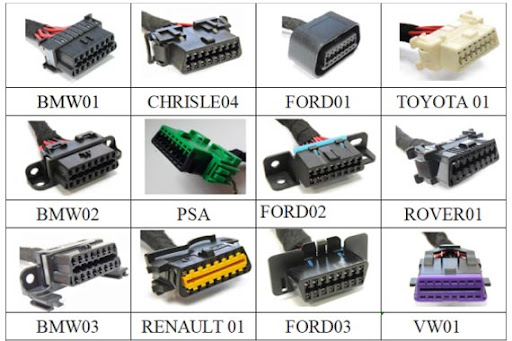

There are many different types of vehicle makes, models, and sizes, made in different places around the world. The OBD II (On-board diagnostics) port may also vary from vehicle to vehicle, in terms of size and position in the vehicle. Therefore, Yeahui can provide a range of telematics harnesses according to customers request. ​ In general, you may find these main types of diagnostic interfaces in your fleet vehicles: OBD 16-Pin, Deutsch 6-Pin, and Deutsch 9-Pin. Yeahui Founded in 2008, we specialized in  custom cable  harness assembly and connector with ISO9001:2015 certified. Yeahui has developed custom harnesses in the past, if there is a large enough demand. If you require a harness for a specific application, please email the Yeahui Sales Team: sales1@yobdiicable.com           More about NEWS( Yeahui Telematics Harness   ).

The  OBD-II Y-splitter extension cable  allows you to connect 2 OBD2 devices on your vehicle at the same time. It features dual female 16pin OBD2 connectors to a single male 16pin OBD2 connector. · 1X OBD2 Male J1962 connector to 2X Female J1962 connectors · Great for installing OBD devices while leaving direct access to the OBD2 port for diagnostics · Flexible, heavy duty twisted shielded cable · Manufactured with high quality, automotive grade materials  . Customized length Future Developments Yeahui continues to look for ways to make the harness selection and installation process easier for our customers. Since most of our customers prefer to use our T-harnesses, our automotive team continuously works to match the connector type to that of the OEM connector. The development of the Universal T-Harness Kits is an example of how we try to build in innovation in every part of our Yeahui solution. Yeahui is a connector supplier with 13 years of experience in developi
